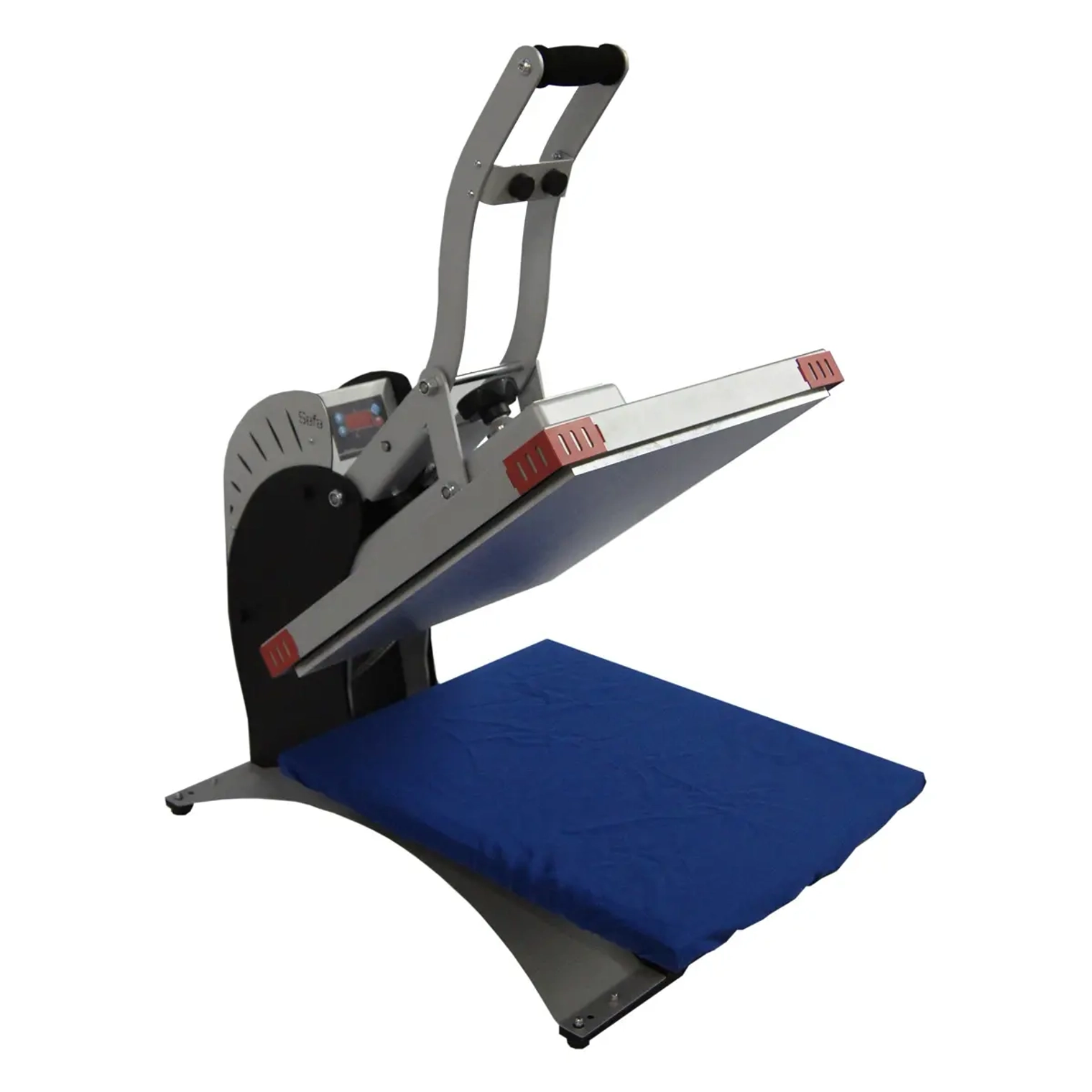

DISCONTINUED Sefa Air Clam X V3 Auto Open Pneumatic Membrane

Brand: Sefa

The Sefa Air Clam X features an inflatable membrane base and automatic opening function. It has relief adjustment measures for manoeuvring around tricky areas such as buttons, zips and pockets.

With assured quality from its European manufacture, the Air Clam X provides perfect distribution of pressure and heat and an effortless closing mechanism.


The electronics on the Sefa Air Clam X are developed by Sefa and have an accurate and fast regulation (PID control) for a wide range of heat transfer products. The press is suitable for laser transfer applications, sublimation on textile and rigid materials and other printing methods.

Sku: XP7301

In Stock

£2,845.00





Technical Specifications

Weight: 61 Kg
Pressure: 500 gr/cm2
Max Temperature: 220°C
Power Supply: 230V single phase + Gr
Electric Power: 2500 W
Amperage: 11 A
Dimensions: 927x868x442 mm


Several optional extras are available for this heat press, please contact Xpres System Sales for further information.

Full details of the Sefa Air Clam X can be found in this PDF brochure.

Please note: this item will be dispatched using a Pallet Force 2 day service which is chargeable. Missed deliveries will incur an additional charge. If you require next day delivery, please contact the system sales team on 01332 85 50 85 for a quotation.

Amperage
11A
Depth
87.8cm
Height
92.2cm
Max Temperature
220°C
Plate Depth
50cm
Plate Width
40cm
Power
2500W
Pressure
0.1 bars: 102gr/cm², 0.2 bars: 204gr/cm², 0.4: 408gr/cm², 0.5 bars: 510gr/cm²
Weight
61kg
Width
44.2cm
