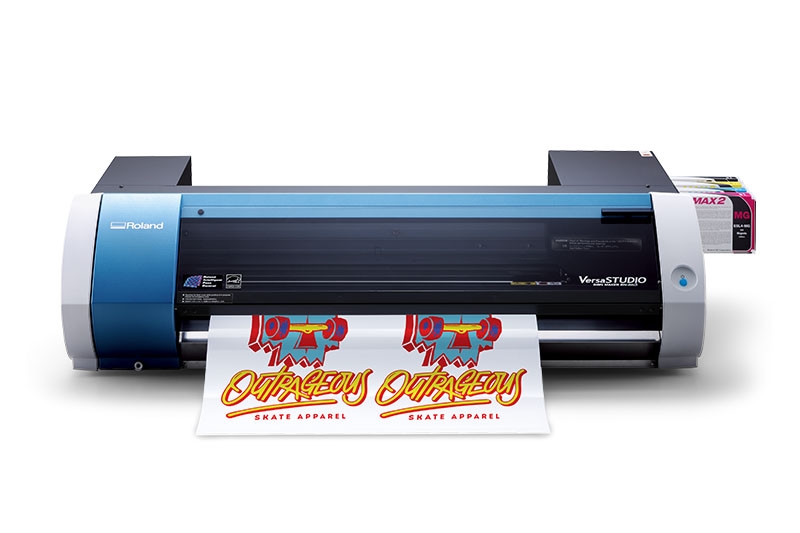

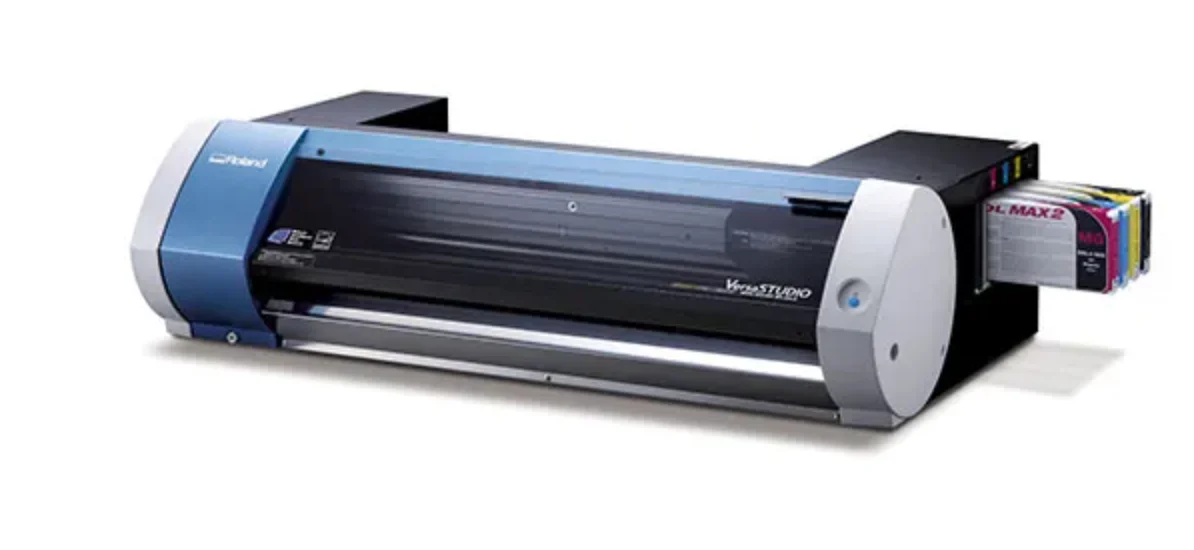

Roland VersaStudio BN-20A Desktop Printer Cutter
Featuring its own print management and design software, the Roland BN-20A Printer Cutter is a complete business solution in a box.
The Roland VersaStudio BN-20A is a colour print and cut solution that’s small enough to sit on a desktop yet offers many of the proven benefits of the wide-format VersaCAMM range at a substantially lower price.
Utilising durable Roland Eco-Sol Max 3 inks and offering only the CMYK ink configuration.
PRINTER/CUTTER
BN-20A
PRICE
£5,099
INK TYPE
ECO-SOL MAX 3
INK CONFIGURATION
CMYK
SPECIAL FEATURES
A HIGH-SPEED PRINT MODE FOR INCREASED PRINT SPEED.

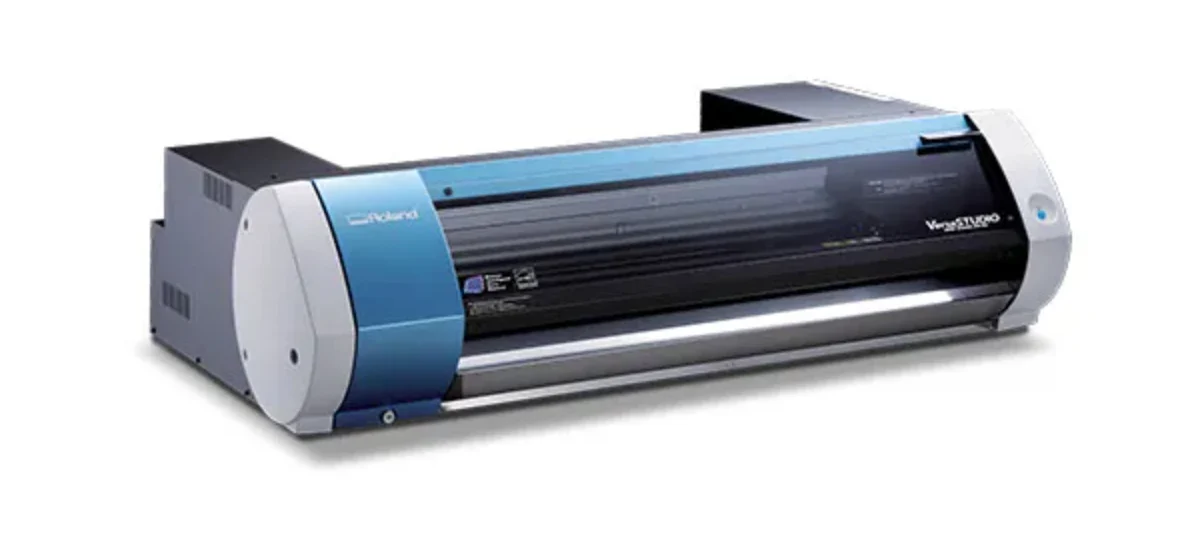

PRINTER/CUTTER
BN-20
PRICE
£5,699
INK TYPE
ECO-SOL MAX
INK CONFIGURATION
CMYK + WHITE
(ECO-SOL MAX 2)
CMYK + METALLIC
SPECIAL FEATURES
AN AUTOMATED INK CIRCULATION SYSTEM RECIRCULATES WHITE INK AND REDUCES INK WASTE
ADDITIONAL PRINTING ON DARK, CLEAR AND METALLIC MEDIA

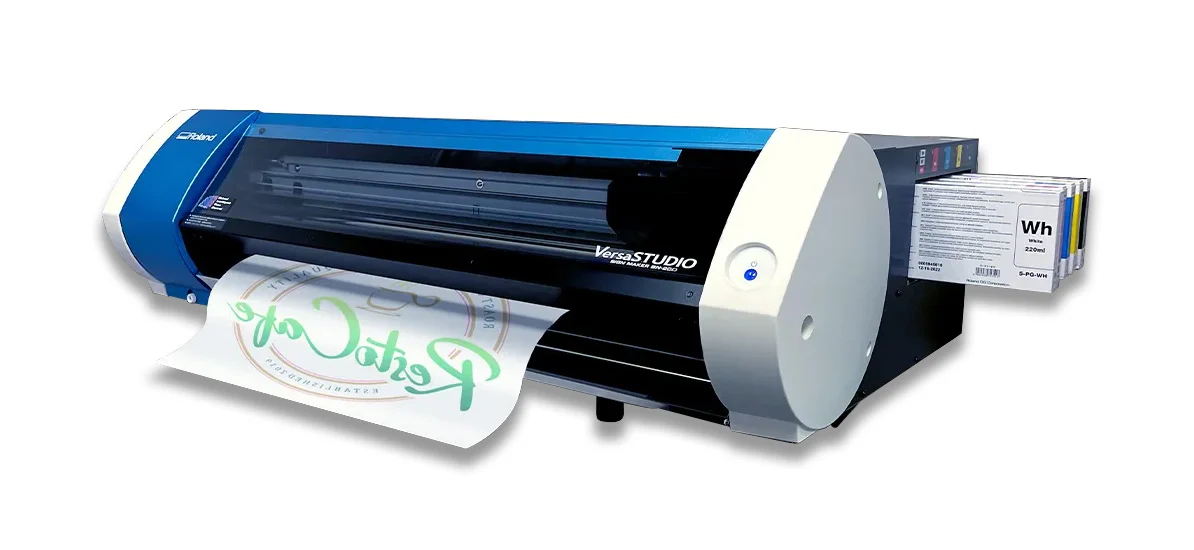

PRINTER/CUTTER
BN-20D
PRICE
£5,699
INK TYPE
SP-G DTF INK
INK CONFIGURATION
CMYK + WHITE
(ECO-SOL MAX 2)
CMYK + METALLIC
SPECIAL FEATURES
AN AUTOMATED INK CIRCULATION SYSTEM RECIRCULATES WHITE INK AND REDUCES INK WASTE
ADDITIONAL PRINTING ON DARK, CLEAR AND METALLIC MEDIA

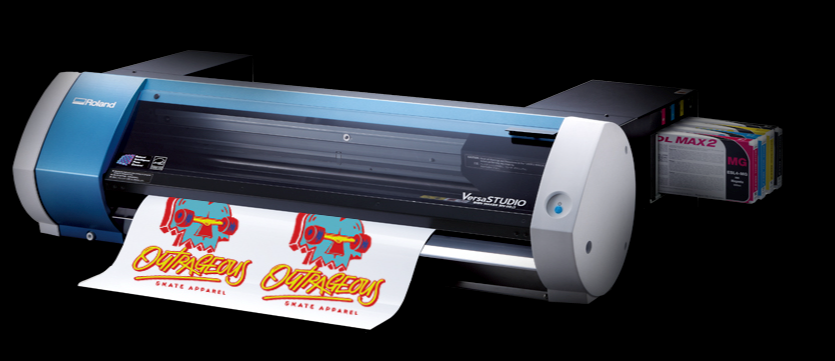

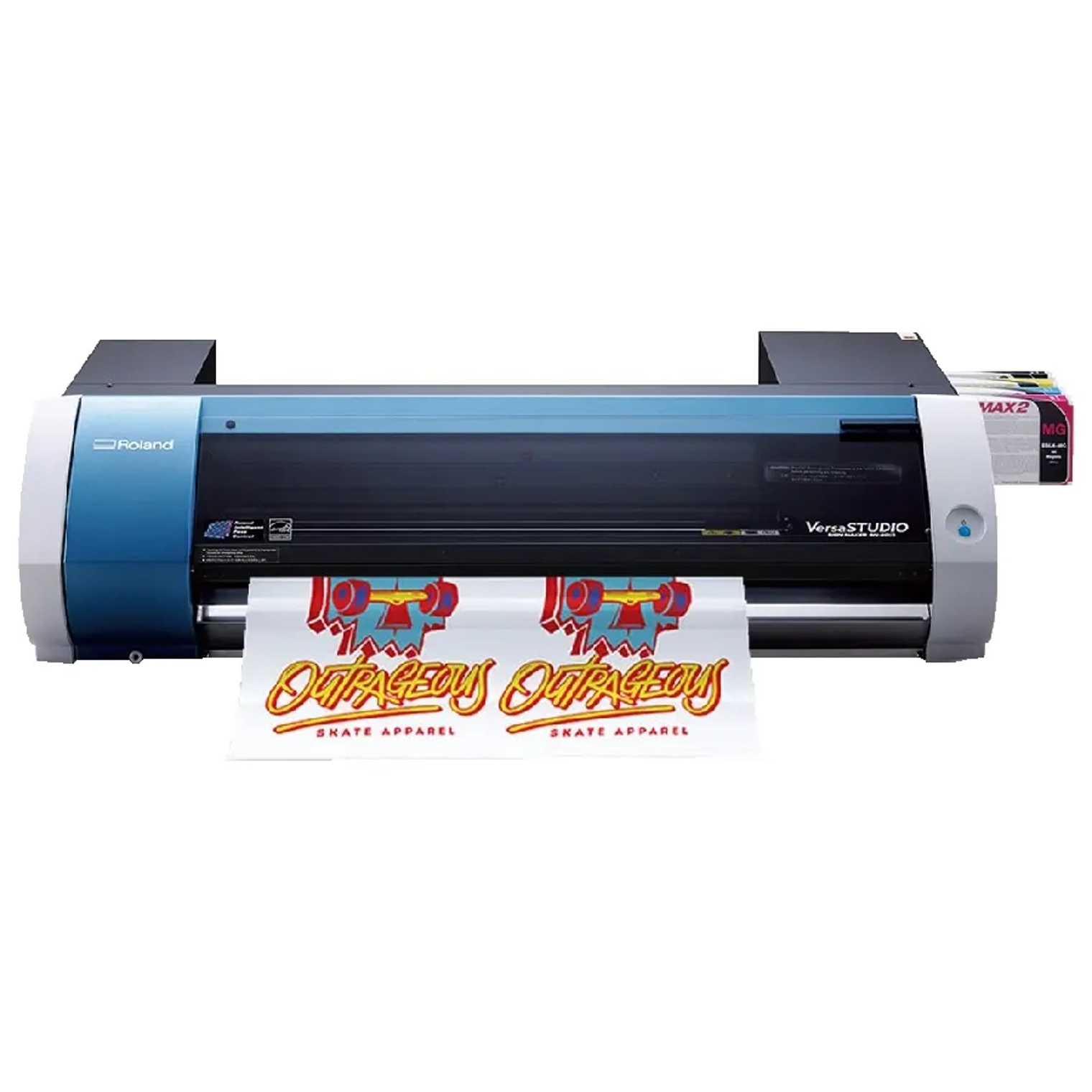

Roland VersaStudio BN-20A Desktop Printer Cutter
The BN-20A enables you to print graphics up to A2 size or 480 mm wide (18.9”), including crop marks for easy finishing. Featuring its own print management and design software, the BN-20A is a complete business solution in a box.
Why Xpres?
Free technical support
Specialist delivery and installation
Free training
1 year warranty
Includes Versaworks
Lease options available
Applications
The world’s first desktop print and cut solution for cost effective, profitable production of personalised clothing including workwear and sportswear, caps, bags and other textile accessories in addition to signage & trophies, vehicle graphics and printed labels.
Posters and decals
Cut vinyl signage
Heat Transfers for garment decoration
Labels and decals for outdoor display
POS and POP
Mobile phone and laptop wraps
Window signs and graphics
Packaging designs
Features
The VersaStudio BN-20A inkjet printer/cutter easily handles coated and uncoated materials in rolls up to 508mm by 30m. Perfect for a variety of applications including labels, decals, heat transfer appliques and posters.
CMYK Ink Options.
Easy control of cutting. Integrated contour cutting with 300g downward force
Low Maintenance, High Reliability
Easy to load media feed
R-Works an easy to use design package
RolandCare included

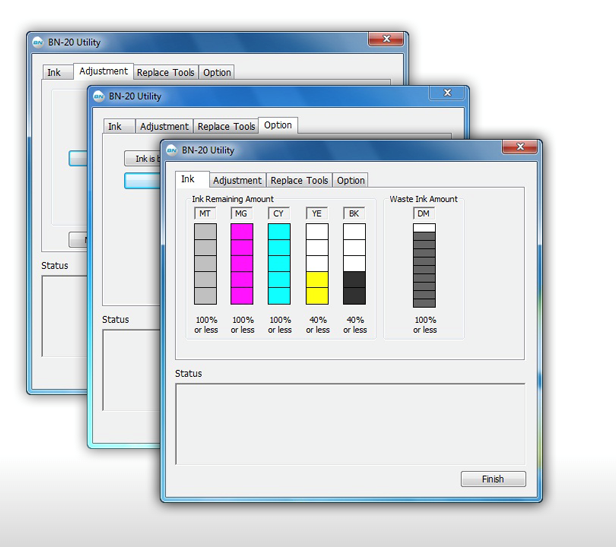

Supported by the latest powerful Roland VersaWorks Dual software
How it works
- Import artwork into the Versaworks software (supplied), and then size and duplicate artwork as required.
- Load selected media and the BN-20A will print and cut your logo.
- Position the transfer on the garment and apply using a heat press.
Specifications
Printing/cutting width: Maximum 480 mm
Ink Cartridges: Roland ECO-SOL MAX 3
Ink Configurations: CMYK
Printing resolution: Max 1440 dpi
Cutting speed: 0.4 (10 mm/s) to 5.9 in/s (150 mm/s)
Blade force: 30 to 300gf
Print Heater Temperature: Fixed at 95°F (35°C)
Connectivity: USB 2.0
Dimensions/Weight: 995 W x 585 D x 291 H mm (39.2" W x 23" D x 11.5" H), 35kg (79.4 lbs)
Included Items: Power cord, USB cable, blade, blade holder, Rolandsoftware Package, Software RIP, User's Manual, etc
Acceptable media
Width: 150 to 515 mm
Printing Thickness: Maximum 1.0 mm with liner
Cutting Thickness: Maximum 4 mm with liner
Roll Weight: Maximum 6 kg
Roll Outer Diameter: Maximum 150 mm
Core Diameter: 50.8 mm or 76.2 mm cores
For further details of the BN20A download the PDF brochure using the attachment button above.
Please note: This item will require specialist delivery and installation which we will have to arrange with the customer, additional costs may occur. Price does not include inks.
