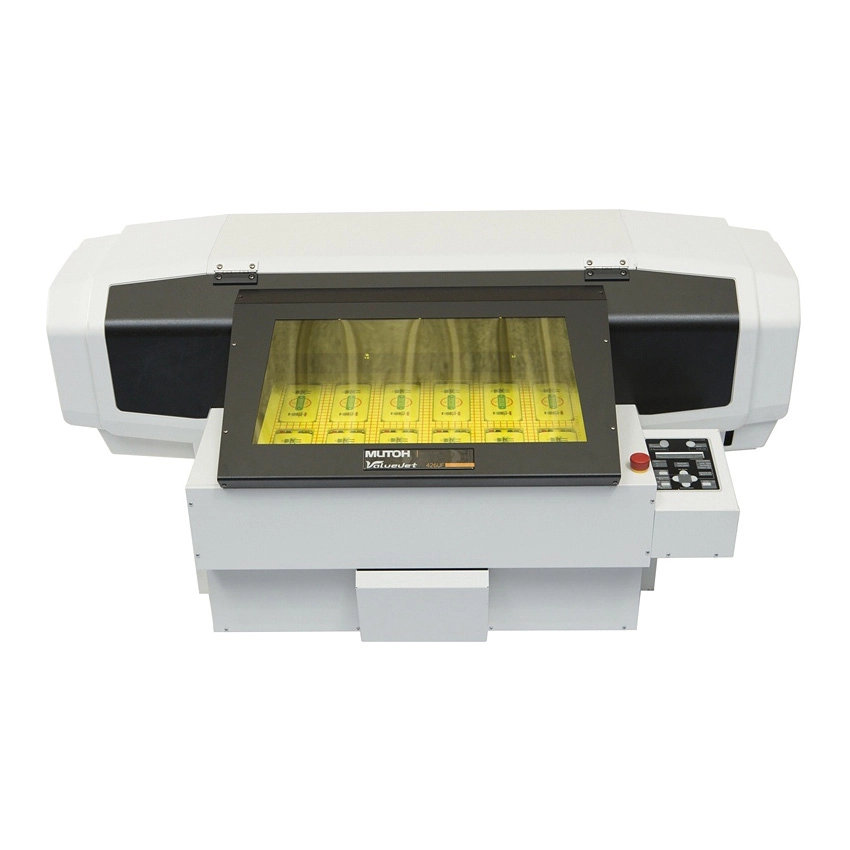

Mutoh ValueJet 426UF Tabletop UV-LED Printer
Mutoh's ValueJet 426UF 19" tabletop UV-LED printer is the perfect fit for any print shop looking to expand its applications and enter the world of UV printing.
Sku: XP2418
Out Of Stock
Mutoh’s ValueJet 426UF 19" tabletop UV-LED printer is the perfect fit for any print shop looking to expand its applications and enter the world of UV printing.
The VJ 426UF prints on a variety of materials including 3D objects up to 2.75 inches thick with Mutoh’s 100% solid UV-LED ink. Print limitless promotional items including pens, phone cases, golf balls, awards and much more. With up to six colour capability including white and varnish ink, and Smart printing technologies such as Intelligent Interweave print technique virtually eliminating banding, the ValueJet 426UF is the ideal choice.
ValueJet 426UF - Technical Key Specifications |
||||
| Print Technology | Drop-on-demand Micro Piezo Inkjet Technology | |||
| Print Head | 1 | |||
| Nozzle Configuration | 180 nozzles x 8 lines | |||
| Drop Mass Range (pl) | 3.8 to 28 | |||
| LED UV lamp life | 14.250 hours | |||
ValueJet 426UF - Media Specifications |
||||
| Size Print Table | 483 mm (19"") x 329 mm (12,95”) | |||
| Max. Print Area | 473 mm (18,62”) x 319 mm (12,55"") | |||
| Max. Media Thickness | Up to 70 mm (2,75"") | |||
| Max. Media Weight | 4 kg | |||
| Media Drying System | Long life LED UV curing lamp | |||
| Vacuum System | Standard integrated - electronically adjustable hold-down strength | |||
ValueJet 426UF - Performance |
||||
| 4-colour setup | 6-colour setup | |||
| CMYK | CMYK only | 100 % Wh or Va | CMYK + Wh + Va * | |
| Speed in tables per hour (excl. unloading / loading time) | ||||
| Super Fine - 1440 x 1440 Uni | 6.2 | 2.7 | 6.2 | 1.1 |
| Fine - 720 x 1440 Uni | 12.5 | 5.9 | 12.5 | 2.4 |
| Fast - 720 x 1080 Bi | 16.4 | 8.4 | 16.4 | 3.4 |
| Data size for 1 table : 473 mm x 319 mm = 0.151 m² 'single layer) - 473 mm x 303 mm = .0143 m² (others) Weaving: i-Weave UV - carriage movement : Data Width * : Multi table mode - Table returns to origin for each layer |
||||
ValueJet 426UF - Ink Specifications |
||||
| Ink Type | LED UV inks - Rigid and Flexible types | |||
| Ink Colours / Volume | CMYK & Varnish - 220 ml cassette White - 220 ml cassette |
|||
| Ink Setup | CMYK (CCMMYK) CMYK + White + Varnish (CMYK+Wh+Va) |
|||
| Ink Consumption * | 1.6 ml / table | |||
| * : Average ink consumption at @720 dpi - coverage of 67 % | ||||
| Compatibility | ABS, Alu Board, Glass, PC, PE, PET, PMMA (acrylic), PP, PS, PVC, Tyvek® * | |||
| * : Ink adhesion will vary among media type and brand. Individual testing is required in function of your specific application. | ||||
ValueJet 426UF - Power Consumption |
||||
| During Printing | < 330 Watt | |||
| Power Supply | AC 100-120 V / AC 200-240 - 60/50 Hz - ≤ 4.0 A / ≤ 2.0 A | |||
ValueJet 426UF - Recommended Working Environment |
||||
| Temperature | 20 °C - 32 °C with Δt: max. 2 °C/h | |||
| Humidity | 40 % - 60 % (no condensation) with ΔRH: max. 5 % RH/h | |||
ValueJet 426UF - Machine Measurements |
||||
| Width x Depth x Height | 1188 x 839 x 545 mm | |||
| Weight | 72 kg |
