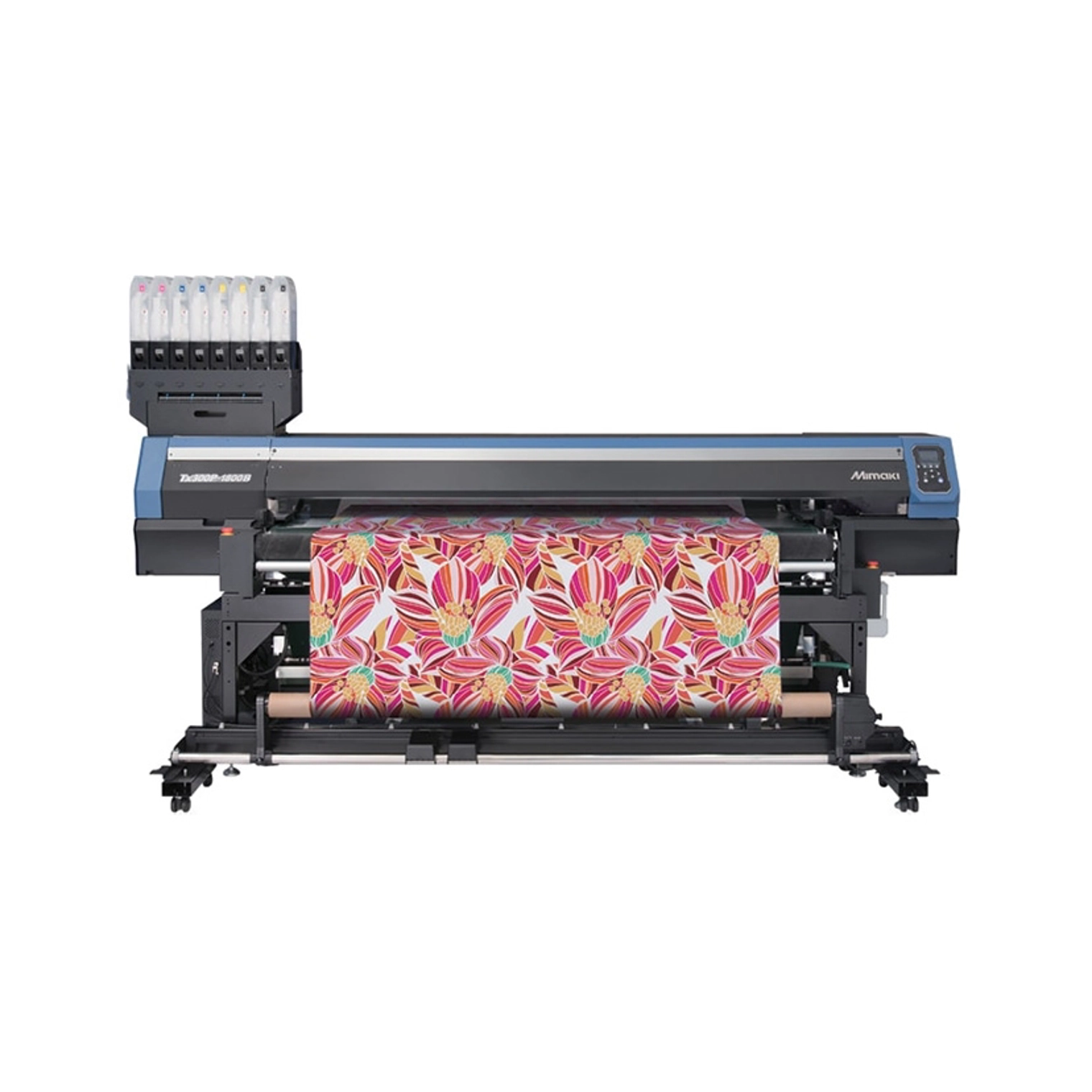

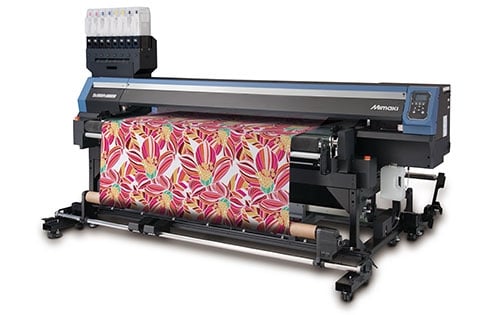

Mimaki TX300P-1800B Direct Textile InkJet Printer
TX300P-1800B DELIVERS Maximum print speed of 50m2/h (Draft speed; in 4-colour mode).
WIDE CHOICE OF INK TYPES
Sublimation, disperse, pigment, reactive and acid inks ensure almost any natural or man-made fabric can be printed to, with vibrant and long-lasting results.
BELT TRANSFER SYSTEM FOR OPTIMUM FABRIC FEEDING
Mimaki’s advanced fabric-feed technology incorporates a ‘sticky belt’ transport system to ensure high levels of accuracy and image quality even when working on stretchable fabrics.
High quality belt-fed direct- to-textile printer for stretchable fabrics
With its winning combination of quality, high speed and innovative automated belt-fed conveyance system, the Mimaki Tx300P-1800B has been developed to print direct to a broad range of natural and man-made fabrics. Particularly effective for printing on modern stretchable materials, the Tx300P-1800B is ideally suited to the production of fashion, clothing and soft furnishings.
Create…
Fashion and Apparel including Dresses, Shirts and Scarves; Upholstery and Soft Furnishing Fabrics including Bed Linen, Cushions, Curtains and much more…
Included Features

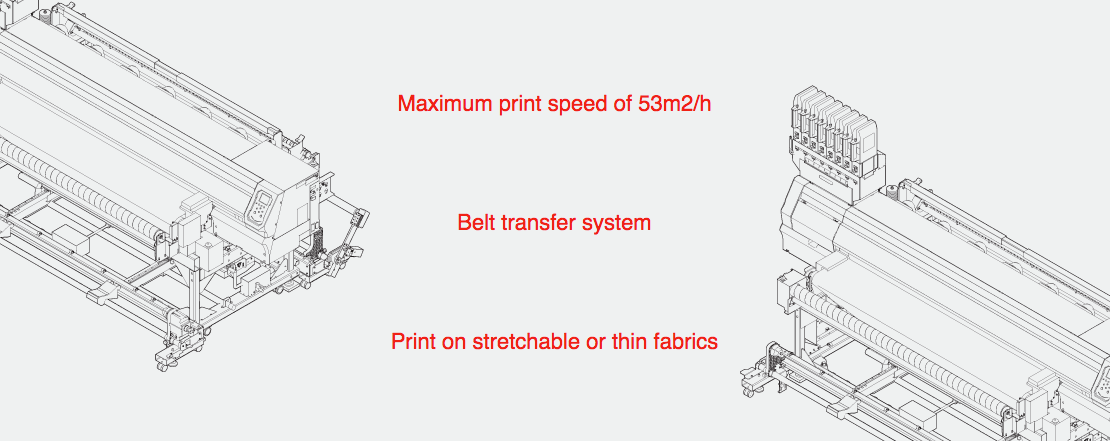

Maximum print speed of 53m2/h (Draft speed – in 4-colour mode)
Sublimation, disperse, reactive & acid dye and textile pigment inks
Belt transfer system for accurate print on stretchable or thin fabrics
Mimaki Mimaki Bulk Ink System (MBIS) and large volume ink packs
Latest Mimaki Advanced Pass System (MAPS)
Nozzle Check Unit (NCU) ensures reliable continuous print operation
Adjustable head gap setting for thick and woven textiles
Unique dual ink capability to simultaneously load textile pigment and sublimation dye
Inks on one printer
Finance Calculator
Finance options are available for this product. These may vary on a case by case basis and should be discussed with a member of the Xpres team.
Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.
| Weekly Equivalent | £86.77 |
|---|---|
| 24 Monthly Payments | £375.99 |
| Total Cost | £9023.76 |
| Tax Relief @ 19% | £1714.51 |
| Cost of Finance | £7309.25 |
| Item | Tx300P-1800B | |
| Printhead | On-demand piezo head (4 in-line printheads) | |
| Print resolution | 360dpi, 540dpi, 720dpi, 1,080dpi, 1,440dpi | |
| Drop size | Minimum 6pl, Maximum 24pl (Varies depend on ink type) | |
| Head height | Manual adjustment (2.0mm~7.0mm)*Standard:3mm | |
| Maximum print width | 1,880mm | |
| Maximum media width | 1,900mm | |
| Ink | Type/Colour | Sublimation dye ink: Sb420 (Bl, M, Y, K, Lbl, Lm) |
| Disperse dye ink: Dd400 (C, M, Y, K, R, Grey, Violet, Pink) | ||
| Textile pigment ink: TP400 (C, M, Y, K)*1 | ||
| Reactive dye ink: RC400 (C, M, Y, K, Bl, R, Or, Lk) | ||
| Acid dye ink: AC400 (C, M, Y, K, Bl, R, Or, Lk)*2 | ||
| Package size | 2L Ink pack | |
| Media thickness | 1.0mm or less | |
| Roll media weight | 40kg or less | |
| Roll diameter | φ250 mm or less | |
| Media type | Natural fibre (cotton, silk, hemp etc.) Chemical fibre (polyester, nylon etc.) | |
| Certification | VCCI class A, FCC class A, ETL UL 60950-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, RCM |
|
| Power supply | Single-phase (AC100~120V/200~240V ±10%)×2 50/60Hz±1Hz | |
| Power consumption | AC100V : 1.44kW x2 / AC200V : 1.92kW x2 | |
| Interface | For print data: Ethernet 1000BASE-T / USB 2.0 Hi-speed For e-mail: Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T |
|
| Operational environment | Temperature: 20 – 30 °C (68 – 86 F°) Humidity: 35 – 65% Rh (Non condensing) | |
| Dimensions (WxDxH) | 3,197 x 1,798 x 1,845mm | |
| Weight | 627kg |
