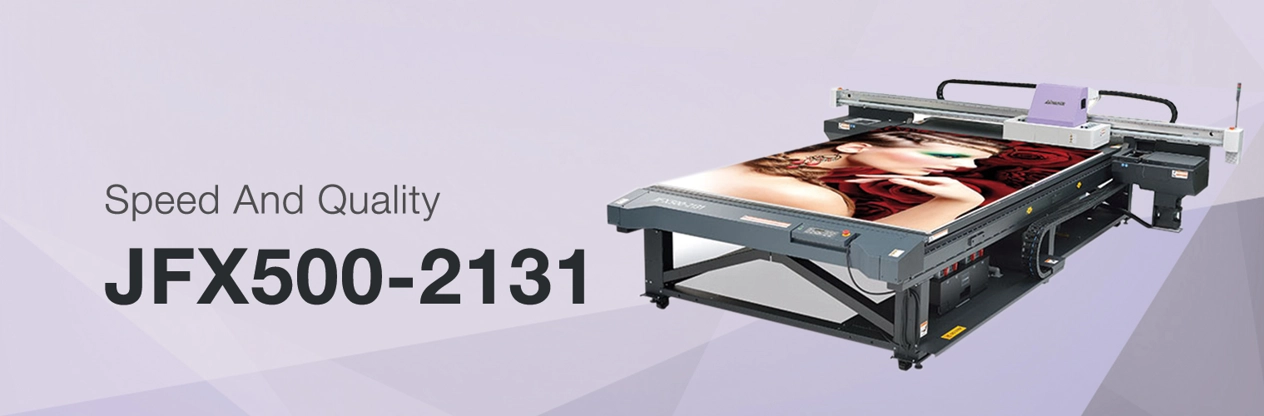

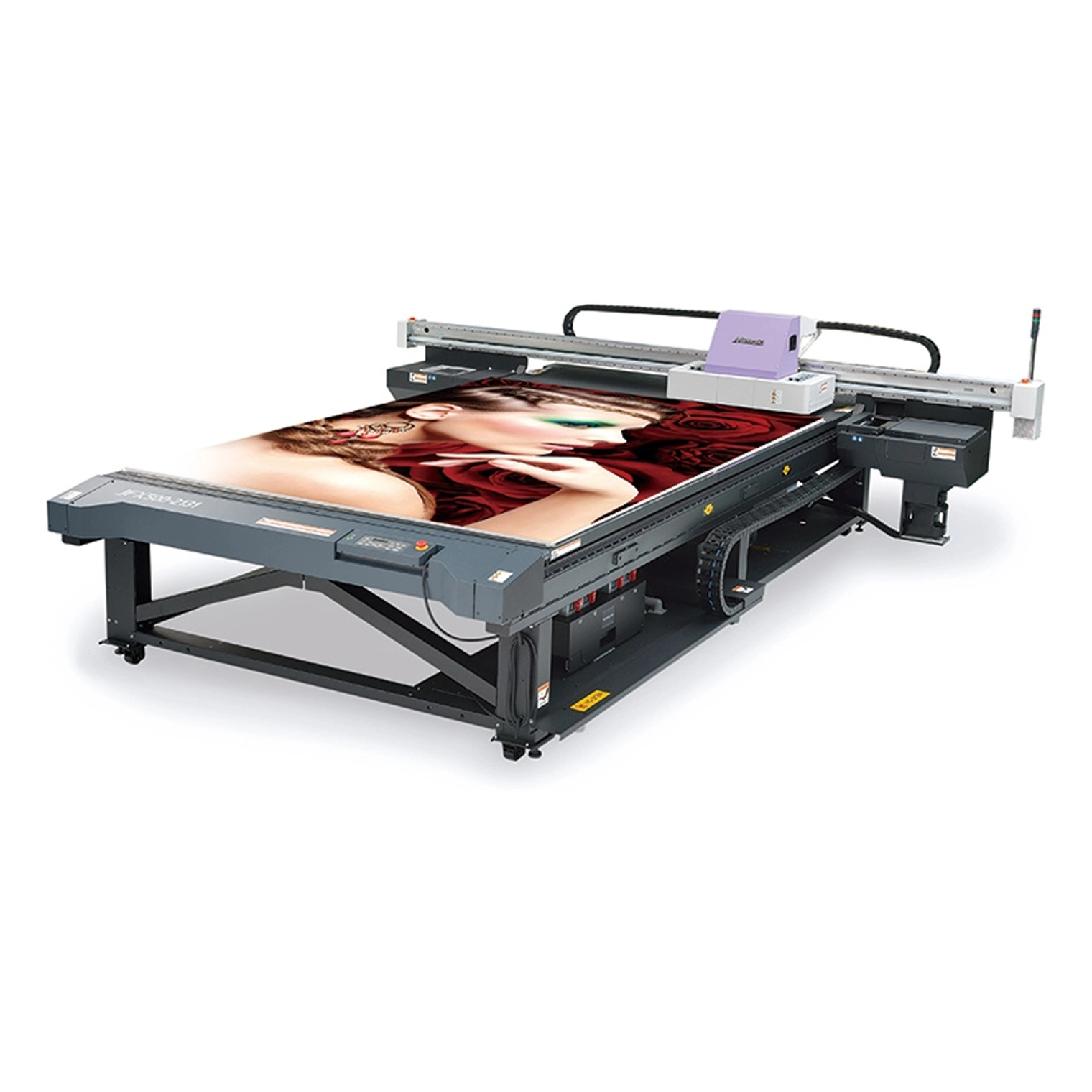

Mimaki JFX500-2131 Flatbed UV Printer
The JFX500-2131 from Mimaki is an ultra high speed, high precision flatbed UV LED printer.
Brimming with powerful new features the groundbreaking printer delivers extraordinary productivity, high print quality and also has some crucial environmental advantages.
With production speeds of up to 60sqm/h, an automatic primer facility and unbelievably high quality prints, this grand format LED UV printer breaks all the established records and defiantly ticks all the boxes! Fantastic for producing High-quality signage, display, POS, packaging and gift items.
Create…

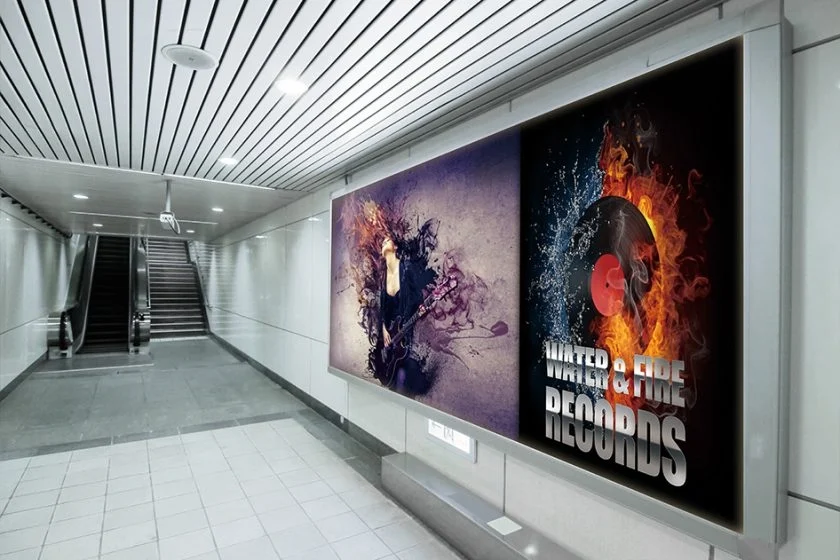

Art Reproduction, Backlit Graphics, Construction Signs, Displays, Exhibition Signs, Rigid Packaging, Lenticular (printing with 3D effects),ID Cards, Logos (3D), Operation Panels, Promotional Items, Relational Gifts, Accessories and much more…
Substrates
Acrylics, polycarbonates, PVC, glass, aluminium, Metal, Polyesters, Foam Board, Styrene, Wood, Stone Attention should be paid to ink adhesion, even though it will print onto almost any substrate, levels of adhesion do differ between materials.
Included Features
Amazing print speeds up to 60sqm/h with CMYK and 45sqm/h with white ink printing. Maximum print size of 2.1 x 3.1 m. Intelligent Microstepping System (IMS) for accurate prints, even 2pt characters can be legibly printed. Variable dot printing with a minimum size of 7 picolitre. Mimaki Advance Pass System reduces bandings. Mimaki Circulation Technology prevents pigment sedimentation of white ink. Reliable nozzle recovery function. Vacuum unit and high performance Rasterlink RIP software included as standard.
Finance Calculator
Finance options are available for this product. These may vary on a case by case basis and should be discussed with a member of the Xpres team.
Xpres are not the lender, but are acting on the customers behalf to arrange contact between our finance partners.
| Weekly Equivalent | £86.77 |
|---|---|
| 24 Monthly Payments | £375.99 |
| Total Cost | £9023.76 |
| Tax Relief @ 19% | £1714.51 |
| Cost of Finance | £7309.25 |
| Print head | On-demand piezo head (6 print heads with 3 staggered configurations) |
| Maximum print area | 2100 x 3100 mm |
| Printing resolutions | 300 dpi, 600 dpi, 900 dpi, 1200 dpi |
| Ink type | LUS-120 Superior durability and flexibility (CMYK + W) LUS-150 Stretchable (150%) UV ink (CMYK + W) LUS-200 Stretchable (200%) UV ink (CMYK + W) LH-100 Hard UV Ink (CMYK + W) |
| Ink supply system | Supplied by 2L ink station |
| Media Size | 2100 x 3100 mm (w x d) |
| Media thickness | Up to 50 mm |
| Media weight | Up to 50 kg / sqm |
| Media set device | Air suction by vacuum |
| UV device | Equipped with UV LED |
| Interface | USB 2.0 |
| Power consumption | Less than 2.4 kVA |
| Dimensions (w x d x h) | 4100 mm x 4462 mm x 1490 mm |
| Weight | 1353 kg |
